Modern JVM

Multithreading

Paweł Jurczenko, 2020

About me

Senior Software Engineer
at Allegro (~1000 microservices)
5 years of Scala development
Distributed systems
Concurrent computing
Functional programming

Agenda

Overview
Threading models
Concurrency primitives
Non-blocking I/O
Thread pools
Best practices
Async stacktraces

Overview

Layered architecture

Hardware threads

OS threads

JVM threads

Green threads

Custom threads

cooperative

scheduling

preemptive

scheduling

threading

model (M:N)

threading

model (1:1)

Green threads

Threads managed in user space instead of kernel space
Scheduled by runtime library or virtual machine
Usually scheduled cooperatively
Examples: coroutines, goroutines, fibers

Overview

Green threads

Goals

Lower management costs
More efficient resources usage
Ability to block without blocking kernel threads
Ability to be spawned in thousands
Multithreading without native thread support

Green threads

Implementations

Continuations / Coroutines - Kotlin Coroutines, Project Loom
Fibers - Quasar, Project Loom, Monix, ZIO, cats-effect
Goroutines - Go runtime
Haskell threads - GHC runtime
Erlang processes - ERTS (Erlang RunTime System)

Concurrency primitives

Reborn

Locks
Semaphores
Channels
Queues
MVars
STM
Actors

Concurrency primitives

Example

// java.util.concurrent.ArrayBlockingQueue
val queue = new ArrayBlockingQueue[String](capacity = 10)
queue.add("Allegro")   // throws "IllegalStateException" when queue is full
queue.offer("Allegro") // returns "false" when queue is full
queue.put("Allegro")   // blocks a thread when queue is full

// java.util.concurrent.ArrayBlockingQueue
val queue = new ArrayBlockingQueue[String](capacity = 10)
queue.add("Allegro")   // throws "IllegalStateException" when queue is full
queue.offer("Allegro") // returns "false" when queue is full
queue.put("Allegro")   // blocks a thread when queue is full

// monix.catnap.ConcurrentQueue
ConcurrentQueue[Future]
  .bounded[String](capacity = 10)
  .flatMap(queue => queue.offer("Allegro")) // returns "Future[Unit]"

Concurrency primitives

Example

Non-blocking I/O

Memory consumption
Context switch overhead
Decreased throughput
Increased cache misses
Increased number of GC roots
Increased risk of deadlocks

Blocking I/O

Risks of having too many threads

Non-blocking I/O

Common misconception

It's not about better I/O performance.

It's about more efficient resources usage.

Non-blocking I/O

Network I/O

Well supported by the operating systems
Well supported by the JVM
Examples: async-http-client, Spring WebClient, Java 11 HTTP Client

Well supported only by some operating systems
Not fully supported on Linux*
JVM on Linux: non-blocking file I/O doesn't exist
JVM on Linux: AsynchronousFileChannel is blocking
Affects not only JVM: libuv has the exact same problems

* might change with io_uring

Non-blocking I/O

File I/O

Well supported by non-relational databases
MongoDB: Async Driver
Cassandra: DataStax Java Driver
Redis: Lettuce
...and many more!

Non-blocking I/O

Non-relational databases

JDBC (Java Database Connectivity):

Really old - February 19, 1997
Completely blocking API
Low-level, leaky abstractions
Nulls, exceptions, side-effects

Non-blocking I/O

Relational databases - problem

Low-level:

PostgreSQL: postgresql-async, jasync-sql
MySQL: mysql-async, jasync-sql
Generic: fiber-based JDBC 🚧

High-level:

PostgreSQL: Quill, Skunk 🚧
MySQL: Quill
Generic: R2DBC 🚧

Non-blocking I/O

Relational databases - solutions

Goal:

We want to execute some application-level code each time a new offer is inserted into the database.

Non-blocking I/O

Relational databases - example

CREATE FUNCTION offer_created() RETURNS trigger as $$
  BEGIN
    PERFORM pg_notify('offers', NEW.offer_id);
    RETURN NEW;
  END;
$$ LANGUAGE plpgsql;

CREATE TRIGGER offer_created_trigger
AFTER INSERT ON offers
FOR EACH ROW EXECUTE PROCEDURE offer_created();

Non-blocking I/O

Relational databases - example

// Skunk
val session: Session[IO] = Session.single(
  host = "localhost",
  port = 5432,
  user = "pjurczenko",
  database = "allegro"
).acquire()

val notifications = session
  .channel(id"offers")
  .listen(maxQueued = 10) // fs2.Stream[IO, Notification]
  .toUnicastPublisher()   // org.reactivestreams.Publisher[Notification]
  .toFlux()               // reactor.core.publisher.Flux[Notification]

// * acquire() and toFlux() are custom extension methods

Non-blocking I/O

Relational databases - example

ADBA (Asynchronous Database Access API)

Oracle initiative
Announced in 2016
Also known as "Asynchronous JDBC"
Responses wrapped in CompletableFuture
No streaming/backpressure capabilities
Not developed anymore: fiber-based JDBC
will be used instead

R2DBC (Reactive Relational Database Connectivity)

Spring (Pivotal) initiative
Announced in 2018
Responses wrapped in Mono/Flux
Compliant with Reactive Streams
First released in November of 2019

Non-blocking I/O

Relational databases - generic solutions

Thread pools

Separate CPU-bound tasks from blocking I/O tasks.

Many applications will work fine with Scala's global thread pool. However, when we have strong performance requirements,
it's good to have at least three different thread pools:

one for CPU-bound tasks,
one for blocking I/O tasks,
one for non-blocking I/O tasks.

Overview

CPU-bound tasks

many small tasks:
beware thread contention
(use e.g. ForkJoinPool)
long-running tasks:
use bounded pool
(e.g. newFixedThreadPool)
when in doubt: benchmark

Thread pools

Multiple thread pools

Blocking I/O tasks

use unbounded pool
(e.g. newCachedThreadPool)
provide limits at the higher,
semantic level

Non-blocking I/O tasks

use bounded pool
(e.g. newFixedThreadPool)
one or two threads should be enough
should work only as a dispatcher

CachedThreadPool

Blocking

network I/O

(e.g. OkHttp)

Blocking

database I/O

(e.g. JDBC)

Blocking

file I/O

(e.g. java.io)

e.g. max(50)

e.g. max(10)

e.g. max(20)

Thread pools

Unbounded pool for blocking I/O

Best practices

Avoid concurrency for as long as possible.

Best practices

Prefer high-level concurrency over low-level concurrency.

Times when you had to use wait() and notify() are long gone.

Best practices

Choose concurrency primitives carefully.

There is a reason for the existence of so many of them:

each addresses a different problem.

Best practices

Know your thread pools.

Control your own thread pools and identify
thread pools from external libraries.
Otherwise this might hit you at the worst time.

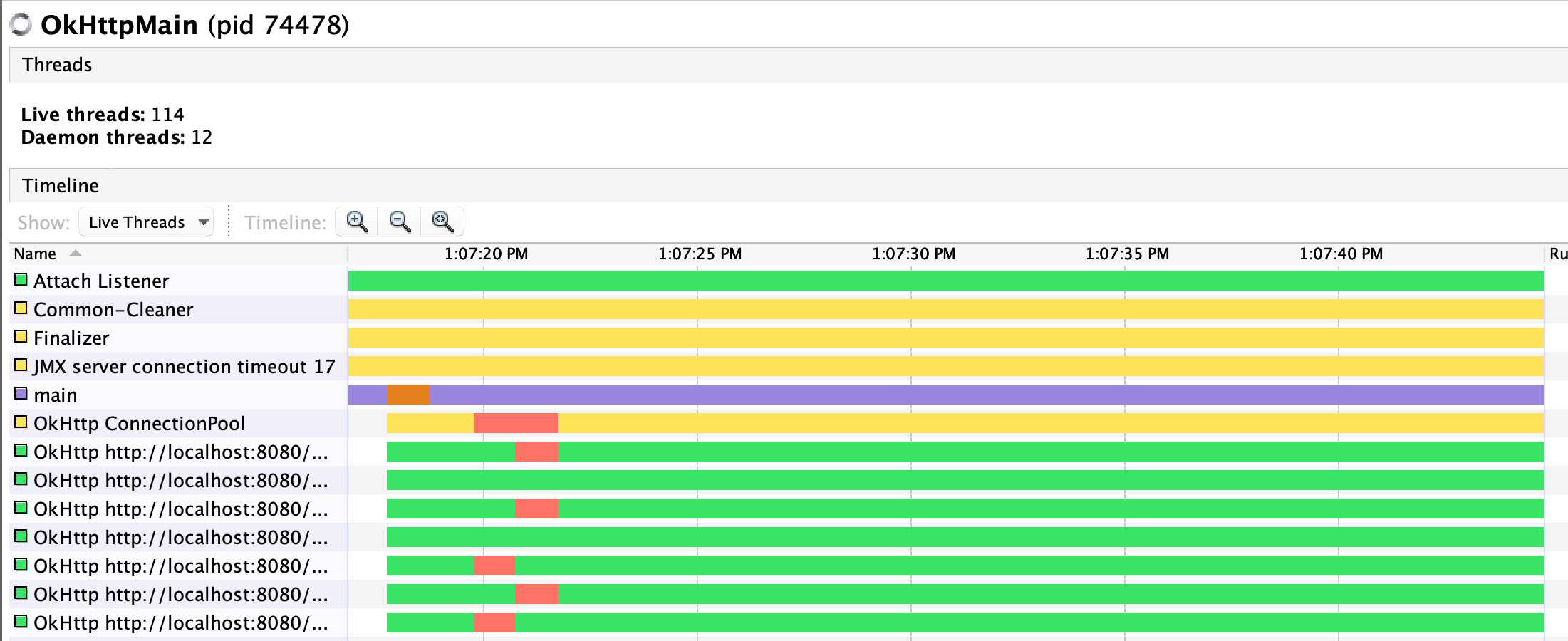

Best practices

#4 - example

// OkHttp
val dispatcher = new Dispatcher()
dispatcher.setMaxRequestsPerHost(100)
dispatcher.setMaxRequests(100)
val client = new OkHttpClient()
  .newBuilder()
  .dispatcher(dispatcher)
  .build()

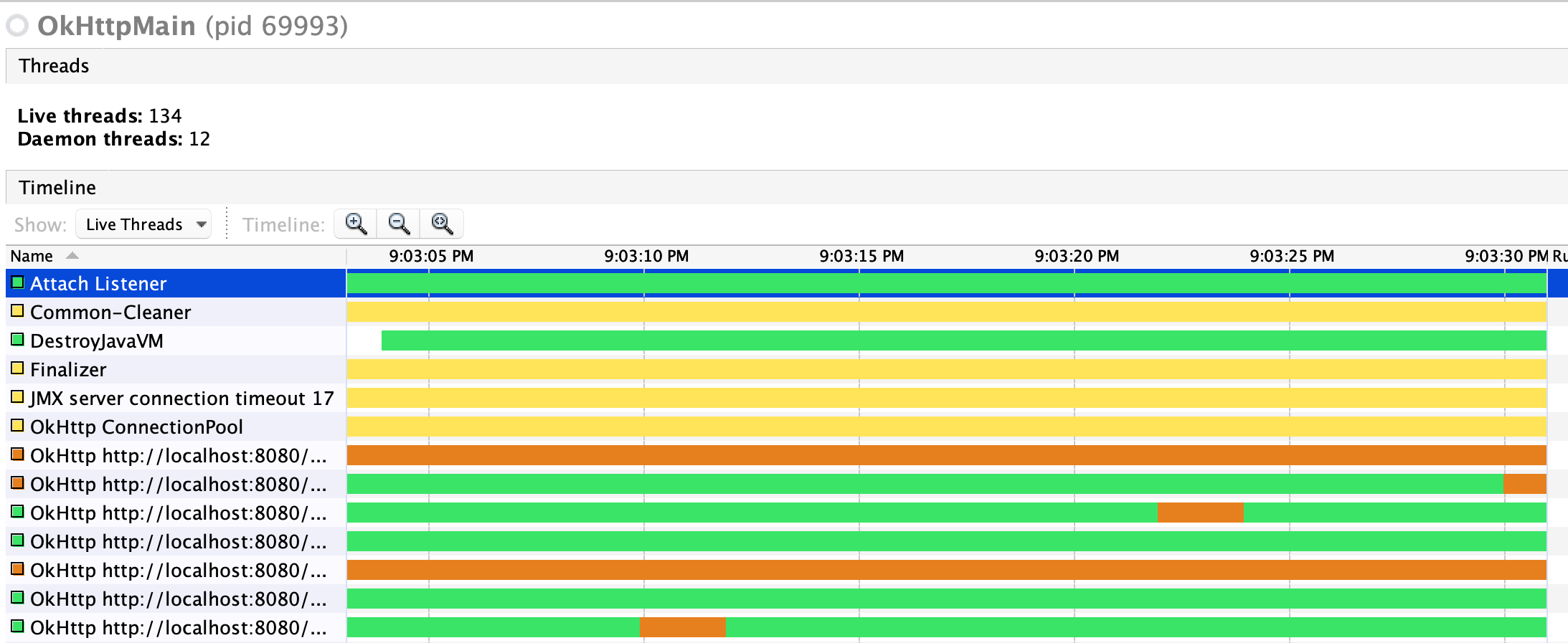

Best practices

#4 - example

Prefer libraries with pluggable thread pools.

you should be in the control of your application runtime, not the developer of some external library
if thread pools aren't pluggable, make sure they are at least configurable

Best practices

#5 - example

// OkHttp
val threadPool = Executors.newFixedThreadPool(100)
val dispatcher = new Dispatcher(threadPool)
dispatcher.setMaxRequestsPerHost(100)
dispatcher.setMaxRequests(100)
val client = new OkHttpClient()
  .newBuilder()
  .dispatcher(dispatcher)
  .build()

Best practices

#5 - example

Be careful with Runtime.getRuntime().availableProcessors()

There are two reasons for that:

it's not 100% reliable when it comes to virtualized environments
(e.g. it might return 1 if you have 4 cores)
even if 1 is the correct answer, it might lead to some trivial deadlocks

Best practices

#6 - solution

// The exact minimum depends on your environment
val numCores = math.max(4, Runtime.getRuntime().availableProcessors())

Async stacktraces

Problem

object Main {
  def main(args: Array[String]): Unit =
    Await.result(Foo.foo, Duration.Inf)
}

object Foo {
  def foo: Future[Nothing] =
    Future(123).flatMap(_ => Bar.bar)
}

object Bar {
  def bar: Future[Nothing] =
    Future(throw new IllegalArgumentException("Test exception"))
}

Exception in thread "main" java.lang.IllegalArgumentException: Test exception
  at Bar$.$anonfun$bar$1(Main.scala:19)
  at scala.concurrent.Future$.$anonfun$apply$1(Future.scala:654)
  at scala.util.Success.$anonfun$map$1(Try.scala:251)
  at scala.util.Success.map(Try.scala:209)
  at scala.concurrent.Future.$anonfun$map$1(Future.scala:288)
  at scala.concurrent.impl.Promise.liftedTree1$1(Promise.scala:29)
  at scala.concurrent.impl.Promise.$anonfun$transform$1(Promise.scala:29)
  at scala.concurrent.impl.CallbackRunnable.run(Promise.scala:60)
  at java.base/java.util.concurrent.ForkJoinTask$RunnableExecuteAction.exec(ForkJoinTask.java:1425)
  at java.base/java.util.concurrent.ForkJoinTask.doExec(ForkJoinTask.java:290)
  at java.base/java.util.concurrent.ForkJoinPool$WorkQueue.topLevelExec(ForkJoinPool.java:1020)
  at java.base/java.util.concurrent.ForkJoinPool.scan(ForkJoinPool.java:1656)
  at java.base/java.util.concurrent.ForkJoinPool.runWorker(ForkJoinPool.java:1594)
  at java.base/java.util.concurrent.ForkJoinWorkerThread.run(ForkJoinWorkerThread.java:177)

Async stacktraces

Problem

Reactor's onOperatorDebug()
Reactor Debug Agent
Kotlin Coroutines (e.g. Debug Mode)
IntelliJ Async Stack Traces
ZIO

Async stacktraces

Solution attempts

// ZIO
object Main {
  def main(args: Array[String]): Unit = {
    val runtime = new DefaultRuntime {}
    runtime.unsafeRun(Foo.foo)
  }
}

object Foo {
  def foo: Task[Nothing] =
    Task(123).flatMap(_ => Bar.bar)
}

object Bar {
  def bar: Task[Nothing] =
    Task(throw new IllegalArgumentException("Test exception"))
}

Async stacktraces

Example

Fiber failed.
A checked error was not handled.
java.lang.IllegalArgumentException: Test exception
  at Bar$.$anonfun$bar$1(Main.scala:19)
  at scalaz.zio.internal.FiberContext.evaluateNow(FiberContext.scala:384)
  at scalaz.zio.Runtime.unsafeRunAsync(Runtime.scala:92)
  at scalaz.zio.Runtime.unsafeRunAsync$(Runtime.scala:78)
  at Main$$anon$1.unsafeRunAsync(Main.scala:6)
  at scalaz.zio.Runtime.unsafeRunSync(Runtime.scala:67)
  at scalaz.zio.Runtime.unsafeRunSync$(Runtime.scala:64)
  at Main$$anon$1.unsafeRunSync(Main.scala:6)
  at scalaz.zio.Runtime.unsafeRun(Runtime.scala:56)
  at scalaz.zio.Runtime.unsafeRun$(Runtime.scala:55)
  at Main$$anon$1.unsafeRun(Main.scala:6)
  at Main$.main(Main.scala:7)
  at Main.main(Main.scala)

Async stacktraces

Example

Fiber failed.
A checked error was not handled.
java.lang.IllegalArgumentException: Test exception
  at Bar$.$anonfun$bar$1(Main.scala:19)
  at scalaz.zio.internal.FiberContext.evaluateNow(FiberContext.scala:384)
  at scalaz.zio.Runtime.unsafeRunAsync(Runtime.scala:92)
  at scalaz.zio.Runtime.unsafeRunAsync$(Runtime.scala:78)
  at Main$$anon$1.unsafeRunAsync(Main.scala:6)
  at scalaz.zio.Runtime.unsafeRunSync(Runtime.scala:67)
  at scalaz.zio.Runtime.unsafeRunSync$(Runtime.scala:64)
  at Main$$anon$1.unsafeRunSync(Main.scala:6)
  at scalaz.zio.Runtime.unsafeRun(Runtime.scala:56)
  at scalaz.zio.Runtime.unsafeRun$(Runtime.scala:55)
  at Main$$anon$1.unsafeRun(Main.scala:6)
  at Main$.main(Main.scala:7)
  at Main.main(Main.scala)

Fiber:0 execution trace:
  at Bar$.bar(Main.scala:19)
  at Foo$.foo(Main.scala:14)

Async stacktraces

Example

Summary

E-mail: pawel.jurczenko@gmail.com
Twitter: @pawel_jurczenko

Contact
